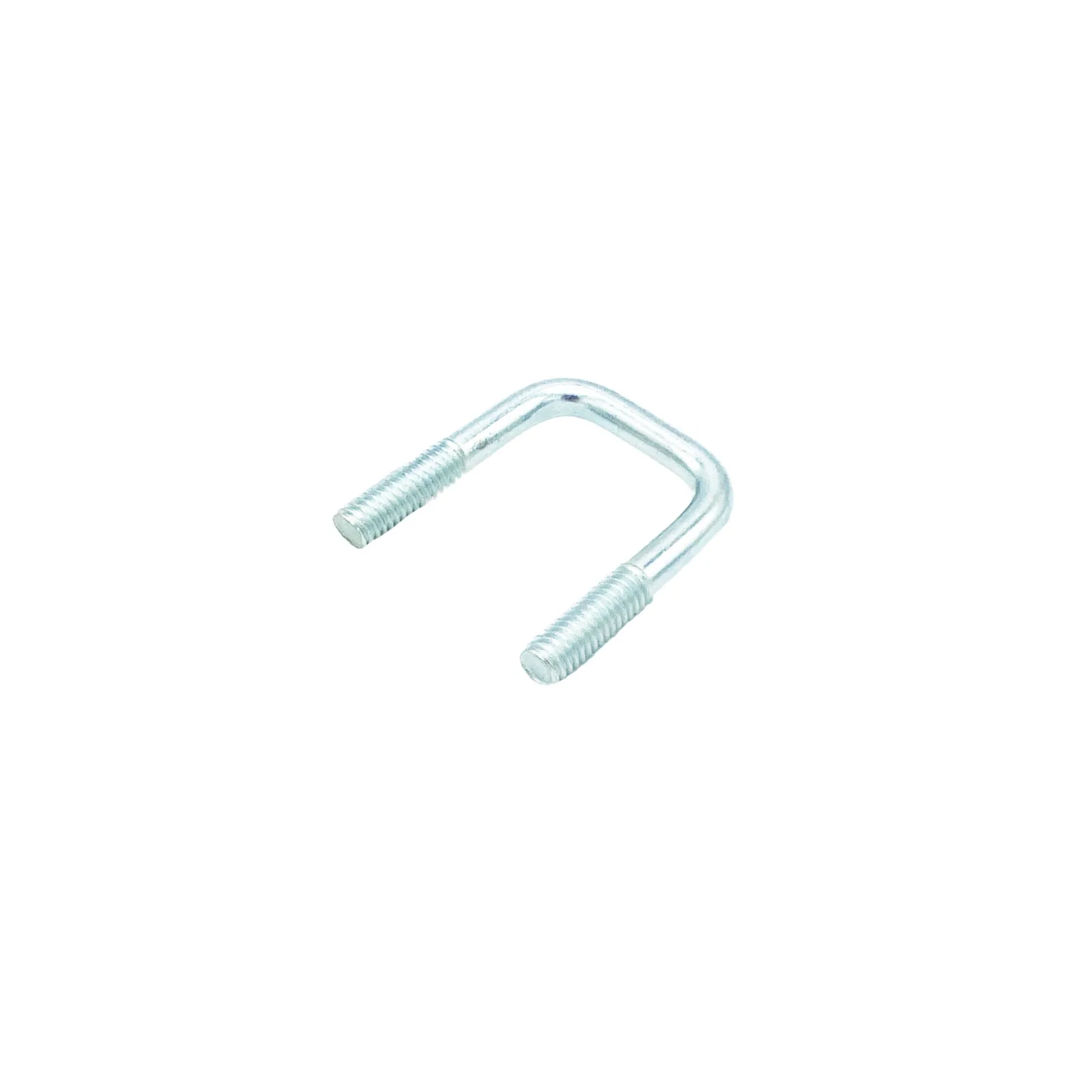

5/16"-18 x 1.3125" x 1.75" Square U-Bolt

A sprayer boom takes a beating on every pass across rough ground. This square U-bolt wraps around the square boom tube and bolts through predrilled holes, so the parts it holds stay put. When an old U-bolt rusts, bends or strips, the boom starts to shift, and this OEM replacement puts the connection back where it belongs.

It fits FIMCO 4, 5 and 7 nozzle booms with 1 inch square tube, and it is made from galvanized steel for strength and durability. A loose boom wears the parts around it, so swapping a worn U-bolt early costs far less than repairing what it damages.

Highlights

• Clamps tight around a 1 inch square boom tube
• Fits FIMCO 4, 5 and 7 nozzle booms with 1 inch square tube
• OEM replacement part
• Galvanized steel for strength and durability
• Warranty: 1 yr Consumer, 90 day Commercial

What it's for

Use it when a U-bolt is rusted, bent or stripped, or when you are servicing the boom mount before a busy season. Doing it before spray day keeps you from stopping in the middle of a field.

It suits the sprayer owner spraying a lawn, a pasture or a field edge, the groundskeeper who runs more than one sprayer, and the farm hand who keeps the rig ready for the next job.

At a glance

How to use it

1. Empty the tank, relieve the pressure, and shut off the sprayer before you work on the boom.
2. Remove the worn U-bolt and its nuts, then check the boom tube for cracks or wear.
3. Fit the new square U-bolt around the square tube and through the predrilled holes, and hand-tighten the nuts before you snug them evenly.
4. Compare the new U-bolt to the old one before you finish the fit.
5. Run water through the system and check the boom for movement before you spray.

Good to know

• Snug the nuts evenly, a turn at a time, so the U-bolt seats square.
• Check the U-bolts and nuts every time you service the sprayer.
• Keep a spare U-bolt in the shop so a broken part doesn't stop a spraying day.
• Pair it with 5/16-18 serrated flange hex nuts and the rest of the boom hardware from the same aisle.

About FIMCO

FIMCO Industries is headquartered in North Sioux City, South Dakota. For more than 60 years the company has built sprayers for every application, from home owner models to agricultural field sprayers.

Replace a damaged U-bolt before it interrupts your spraying work.
